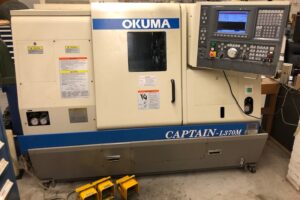

(1) Pre-owned Okuma CNC Turning Center
Model: Captain L370M
Year of Manufacture: 2002
Location: Maine
Condition: Excellent!!! Very Low Hours, In Physics Lab (Minor leak in coolant tank)
SPECIFICATIONS
220/480/60/3
OSP-E100L CNC Control

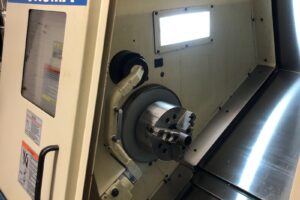

8” 3 Jaw Hydraulic Chuck
21” Swing
16.5” Swing over Saddle
Max Turning Diameter x Length: 13.38” x 19.68”
Travels: X – 10.23”, Z – 20.47”
Rapid Feed Rate: X – 787 ipm, Z – 984 ipm
Spindle Motor: 20HP
Bore through Spindle: 2.44”
Main Spindle Speed: 45 – 4500 RPM

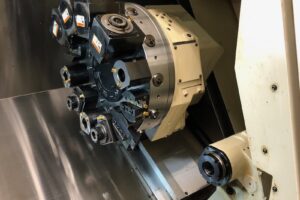

12 Station Turret
Live Tooling Motor: 7.5HP
Milling Speed: 100 – 4500 RPM
C-Axis – 360° (Increment 0.001°)
Flood Coolant
Tool Touchsetter

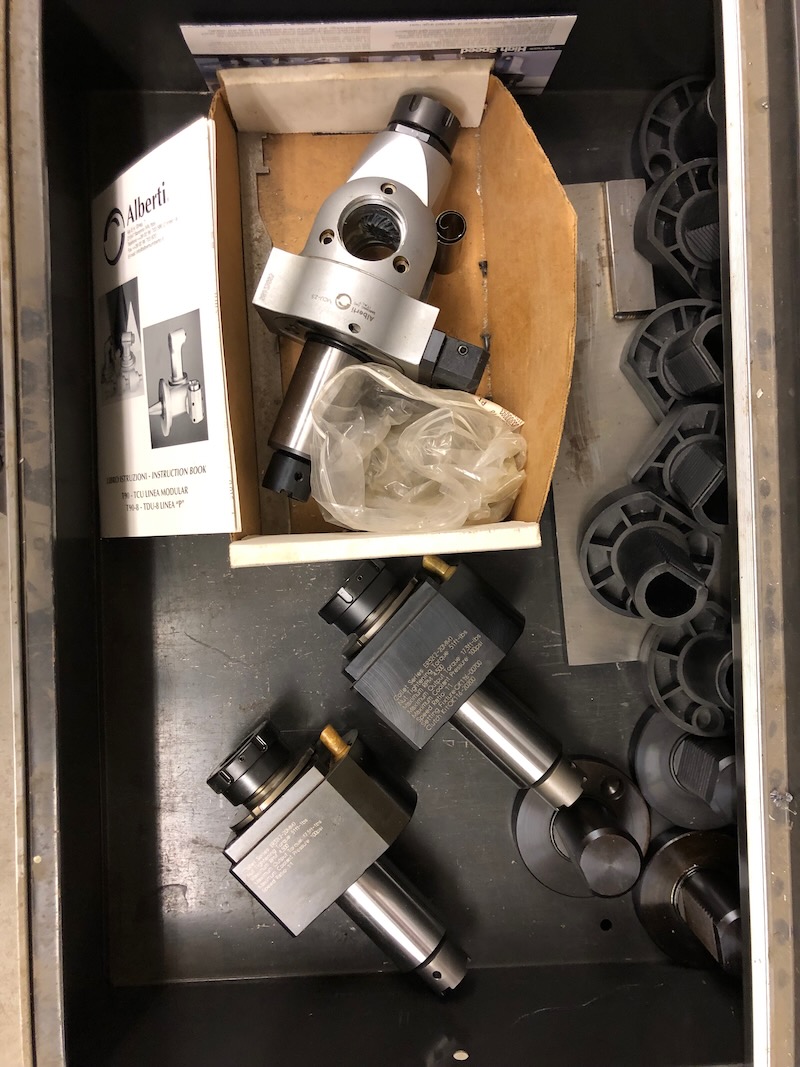

Much tooling including (4) Radial & (4) Axial live tool holders.
Machine Dimensions: 87” x 68” x 69” High, Weight: 8800 Lbs.
Price: POR
To the best of our knowledge, the specifications contained herein are accurate but should be verified at time of inspection. If you have any further questions please call me at (207) 784-1999.
